Product Summary
The QM400HA-H is a high power switching use insulated type transistor module. Applications include AC motor controllers, UPS, DC motor controllers and NC equipment.
Parametrics
QM400HA-H absolute maximum ratings: (1)Collector-base voltage: 600V; (2)Emitter-base voltage: 7V; (3)Collector current: 400A; (4)Collector reverse current: 400A; (5)Collector dissipation: 1500W; (6)Base current: 10A; (7)Surge collector reverse current (forward diode current): 4000A; (8)Junction temperature: -40 to +150℃; (9)Storage temperature: -40 to +125℃.
Features
QM400HA-H features: (1)IC Collector current 400A; (2)VCEX Collector-emitter voltage 600V; (3)hFE DC current gain 750; (4)Insulated Type; (5)UL Recognized.

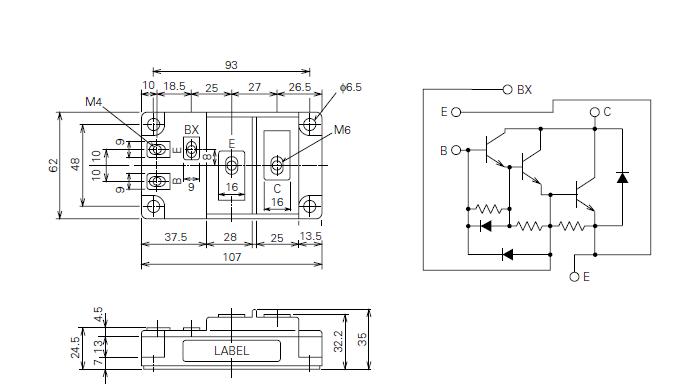

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM400HA-H |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
QM400HA1-2H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
QM400HA-24 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
QM400HA-24B |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
QM400HA-2H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
QM400HA-2HB |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
QM400HA-H |
Other |
|
Data Sheet |
Negotiable |
|
||||
