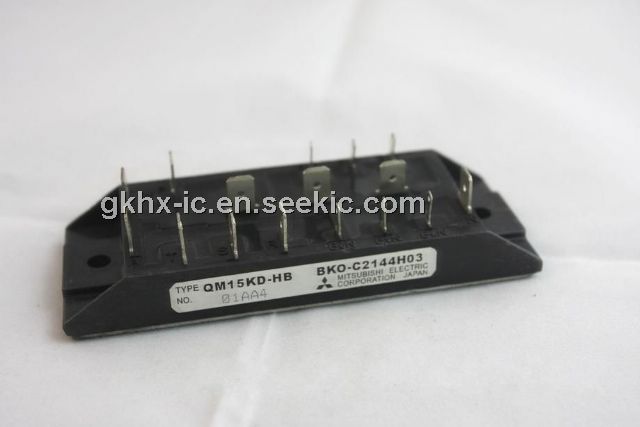

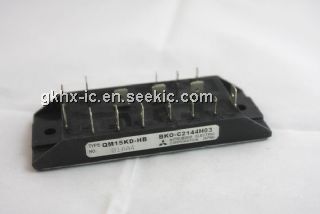

Product Summary
The QM15KD-HB is a transistor module ideal for Inverters, Servo drives, DC motor controllers, NC equipment, Welders.
Parametrics
QM15KD-HB absolute maximum ratings: 1)VRRM, Repetitive peak reverse voltage: 800V; (2)VRSM, Non-repetitive peak reverse voltage: 900V; (3)Ea, Recommended AC input voltage: 220V; (4)Tj, Junction temperature: –40 to 150℃; (5)Tstg, Storage temperature –40 to 125℃; (6)Viso, Isolation voltage: 2500V.
Features
QM15KD-HB features: (1)IC Collector current: 15A; (2)VCEX Collector-emitter voltage: 600V; (3)hFE DC current gain: 250; (4)Insulated Type; (5)UL Recognized: Yellow Card No. E80276 (N), File No. E80271.

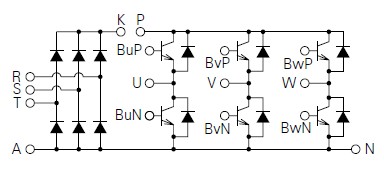

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM15KD-HB |
Other |
|
Data Sheet |
Negotiable |
|
||||
