Product Summary
The QM100HC-M is a high power switching use non-insulated type module. The applications of the QM100HC-M include Robotics, Forklifts, Welders.
Parametrics
QM100HC-M absolute maximum ratings: (1)Collector-emitter voltage, VCEX (SUS): 350V; (2)Collector-emitter voltage, VCEX: 350V; (3)Collector-base voltage, VCBO: 400V; (4)Emitter-base voltage, VEBO: 10V; (5)Collector current, IC: 100A; (6)Collector reverse current, -IC: 100A; (7)Collector dissipation, PC: 420W; (8)Base current, IB: 3A; (9)Surge collector reverse current (forward diode current), -ICSM: 1000A; (10)Junction temperature, Tj: -40 to 150℃; (11)Storage temperature, Tstg: -40 to 125℃; (12)Isolation voltage, Viso: 2500V.
Features
QM100HC-M features: (1)IC Collector current: 100A; (2)VCEX Collector-emitter voltage: 350V; (3)hFE DC current gain: 100; (4)Non-Insulated Type.

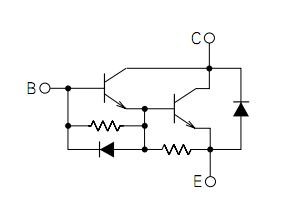

Diagrams
