Product Summary

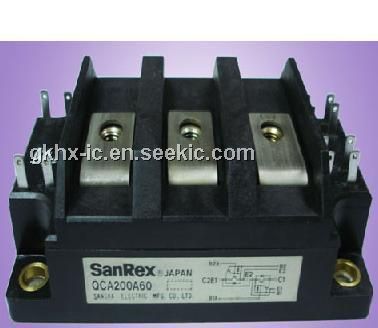

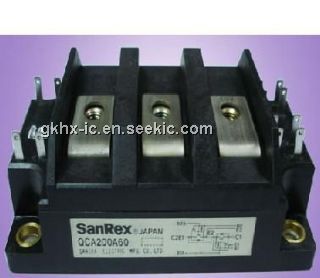

The QCA200A60 is a dual Darlington power transistor module which has series- connected high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction. The applications of the QCA200A60 are Motor Control（VVVF）, AC/DC Servo, UPS, Switching Power Supply, Ultrasonic Application.
Parametrics
QCA200A60 absolute maximum ratings: (1)Collector-Base Voltage: 600 V; (2)Collector-Emitter Voltage VBE＝－2V: 600 V; (3)Emitter-Base Voltage: 10V; (4)Collector Current: 200A; (5)Reverse Collector Current: 200 A; (6)Base Current: 12A; (7)Total power dissipation TC＝25℃: 1250 W; (8)Junction Temperature:－40 to ＋150 ℃; (9)Storage Temperature:－40 to ＋125 ℃; (10)solation Voltage A.C.1minute: 2500 V.
Features
QCA200A60 features: (1)IC＝200A, VCEX＝400/600V; (2)Low saturation voltage for higher efficiency; (3)High DC current gain hFE; (4)Isolated mounting base; (5)VEBO 10V for faster switching speed.
