Product Summary

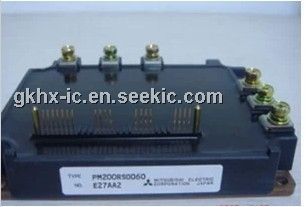

The PM200RSD060 is an isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. Applications of the PM200RSD060 include Inverters, UPS, Motion/Servo Control and Power Supplies.
Parametrics
PM200RSD060 absolute maximum ratings: (1)Power Device Junction Temperature: -20 to 150℃; (2)Storage Temperature: -40 to 125℃; (3)Case Operating Temperature: -20 to 100℃; (4)Module Weight (Typical): 920 Grams; (5)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part): 400 Volts; (6)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.
Features
PM200RSD060 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic; (4) Low Loss Using 4th Generation IGBT Chip.

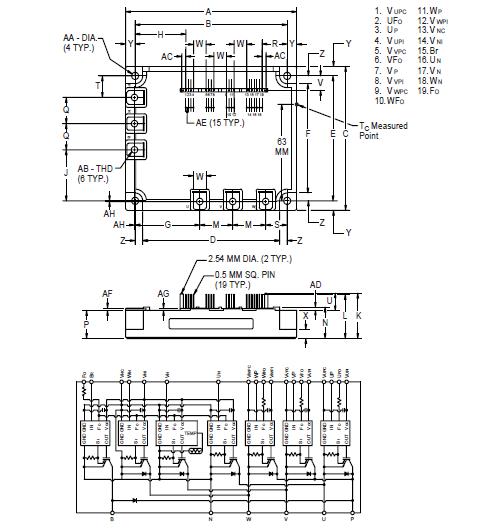

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PM200RSD060 |
|
MOD IPM 7PAC 600V 200A |
Data Sheet |
