Product Summary

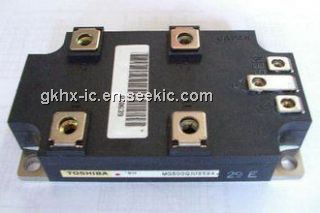

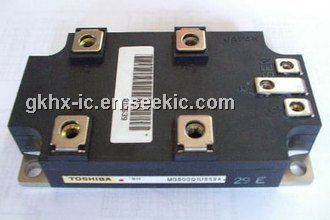

The MG600Q1US59A is an IGBT module for high power switching applications motor control applications. Applications include General purpose inverters, servo drives and motor controls.

Parametrics

MG600Q1US59A absolute maximum ratings: (1)collector-emitter voltage: 1200V; (2)gate-emitter voltage: ±20V; (3)sense-emitter voltage: 40V; (4)base current: 5A; (5)collector power dissipation: 2750W; (6)Junction temperature: 150℃; (7)storage temperature: -40 to +125℃; (8)isolation voltage: 2500V; (9)collector current-dc: 600A; (10)collector current-1ms: 1200A.

Features

MG600Q1US59A features: (1)The electrodes are isolated from case; (2)Enhancement-mode; (3)Integrates fault-signal output circuit in package (Short-Circuit and Over-Current); (4)UL Recognized.

Diagrams

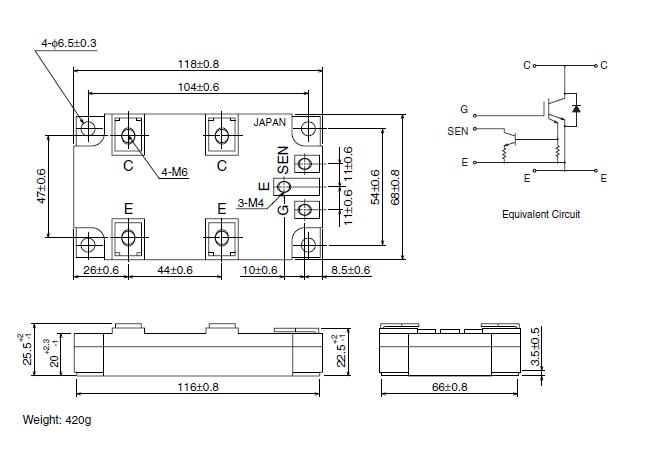

MG600Q1US59A OUTLINE DRAWING & EQUIVALENT CIRCUIT
