Product Summary

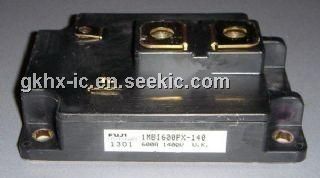

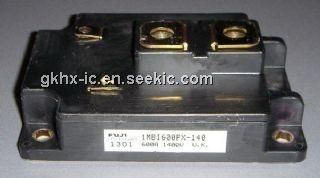

The 1MBI600PX-140 is an IGBT module. Applications include High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
1MBI600PX-140 absolute maximum ratings: (1)Collector-Emitter voltage: 1400V; (2)Gate-Emitter voltage: ±20V; (3)Max. Power Dissipation: 4100W; (4)Junction temperature: +150℃; (5)Storage temperature: -40 to +125℃; (6)Isolation voltage: 2500V.
Features
1MBI600PX-140 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance.
Diagrams
