Product Summary

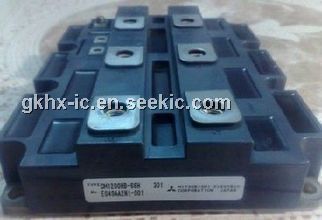

The CM1200HB-50H is a high power switching use insulated type HVIGBT module. Applications include Inverters, Converters, DC choppers, Induction heating and DC to DC converters.
Parametrics
CM1200HB-50H absolute maximum ratings: (1)collector-emitter voltage: 2500V; (2)gate-emitter voltage: ±20V; (3)emitter current-dc: 1200A; (4)emitter current-Pulse: 2400A; (5)MAX. power dissipation: 15600W; (6)Junction temperature: 150℃; (7)storage temperature: -40 to +125℃; (8)isolation voltage: 6000V; (9)collector current-dc: 1200A; (10)collector current-Pulse: 2400A.
Features
CM1200HB-50H features: (1)IC 1200A; (2)VCES 2500V; (3)Insulated Type; (4)1-element in a pack.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM1200HB-50H |
Other |
|
Data Sheet |
Negotiable |
|
||||
