Product Summary

The BYV54V200 is a dual rectifier which is suited for switchmode power supply and high frequency DC to DC converters. Packaged in ISOTOPTM this device is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

Parametrics

BYV54V200 absolute maximum ratings: (1)RMS forward current: 100 A; (2)Average forward current: 50 A; (3)Surge non repetitive forward current: 1000 A; (4)Storage and junction temperature range: -40 to+150℃.

Features

BYV54V200 features: (1)suited for smps; (2)very low forward losses; (3)negligible switching losses; (4)high surge current capability; (5)high avalanche energy capability.

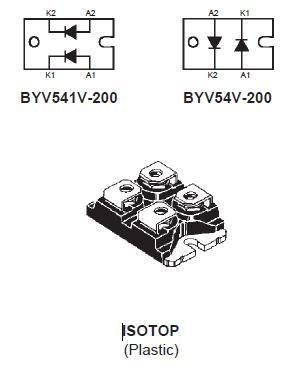

Diagrams

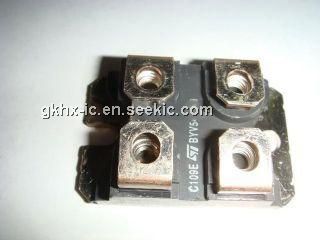

BYV54V200 ISOTOP (Plastic)
