Product Summary
The 7MBR15NE120 is an IGBT module. Applications include Inverter for Motoe Drive, AC and DC Servo Drive Amplifier and Uninterruptible Power Supply.
Parametrics
7MBR15NE120 absolute maximum ratings: (1)Collector-Emitter Voltage(Inverter): 1200V; (2)Gate -Emitter Voltage(Inverter): ± 20V; (3)Collector Power Dissipation(Inverter): 200W; (4)Collector Current-IC(Inverter): 15A; (5)Collector Current-ICP(Inverter): 30A; (6)Collector Current--IC(Inverter): 15A; (7)Operating Junction Temperature: +150℃; (8)Storage Temperature: -40 ~ +125℃; (9)Isolation Voltage: AC2500 V; (10)Mounting Screw Torque: 1.7 Nm.
Features
7MBR15NE120 features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure; (4)Converter Diode Bridge Dynamic Brake Circuit.

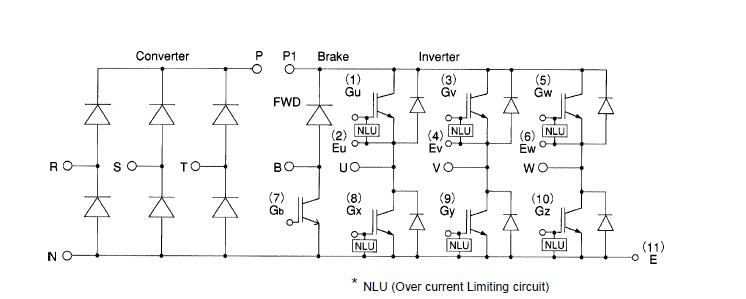

Diagrams
