Product Summary

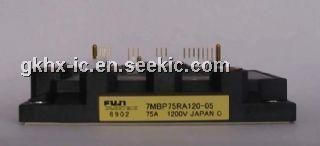

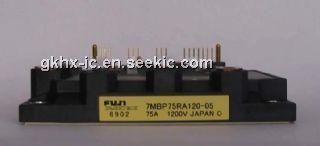

The 7MBP75RA120-05 is an IGBT module-IPM R series.

Parametrics

7MBP75RA120-05 absolute maximum ratings: (1)DC bus voltage: 900V; (2)DC bus voltage (surge): 1000V; (3)DC bus voltage (short operating): 800V; (4)Collector-Emitter voltage: 1200V; (5)DB Reverse voltage: 1200V; (6)Supply voltage of Pre-Driver: 0~20V; (7)Input signal voltage: 0~VzV; (8)Input signal current: 1mA; (9)Alarm signal voltage: VccV; (10)Alarm signal current: 15mA; (11)Junction temperature: 150℃; (12)Operating case temperature: -20~+100℃; (13)Storage temperature: -40~+125℃; (14)Isolating voltage: 2500V.

Features

7MBP75RA120-05 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)Compatible with existing IPM-N series packages; (4)High performance and high reliability IGBT with overheating protection; (5)Higher reliability because of a big decrease in number of parts in built-in control circuit.

Diagrams

7MBP75RA120-05 Block diagram
