Product Summary

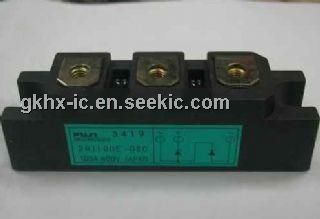

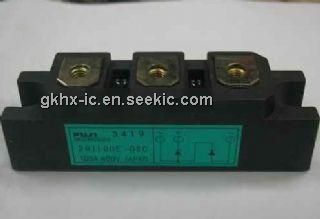

The 2RI100E-080 is a power diode module. Applications include inverters for AC motors, power supply units for DC motors, DC power supply units for battery chargers and general purpose DC power supply unit.

Parametrics

2RI100E-080 absolute maximum ratings: (1)repective peak reverse voltage: 800V; (2)non-repective peak reverse voltage: 880V; (3)average forward current: 2*100A; (4)surge current: 2000A; (5)junction temperature: -40 to +150℃; (6)storage temperature: -40 to +150℃; (7)vibration resistance:5G; (8)Net. weight: 180g.

Features

2RI100E-080 features: (1)all the terminal and the mounting plate are elecrically isolated. It can be installed in the same cooling fin as other modules, thus saving installation space-a cost-effective feature; (2)the diode chips are coated with a glass of zinc oxide, making them highly resistant to temperature and humidity vatiation; (3)two diodes chips are connected in series internally, so allowing the rectifying circuit to be simplified.

Diagrams

2RI100E-080 outline drawing
