Product Summary

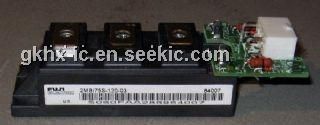

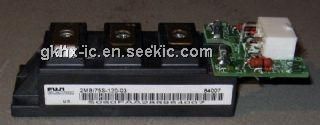

The 2MBI75S-120-03 is an IGBT module. Applications include High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.

Parametrics

2MBI75S-120-03 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200V; (2)Gate -Emitter Voltage: ± 20 V; (3)Max. Power Dissipation: 600 W; (4)Operating Temperature: +150℃; (5)Storage Temperature: -40 ~ +125℃; (6)Isolation voltage: 2500V.

Features

2MBI75S-120-03 features: (1)NPT-Technology; (2)Square SC SOA at 10 x IC; (3)High Short Circuit Withstand-Capability; (4)Small Temperature Dependence of the Turn-Off Switching Loss; (5)Low Losses And Soft Switching.

Diagrams

2MBI75S-120-03 Equivalent Circuit
