Product Summary

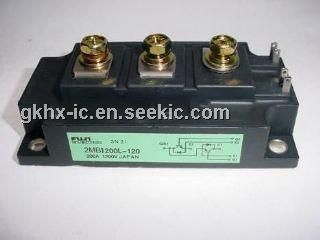

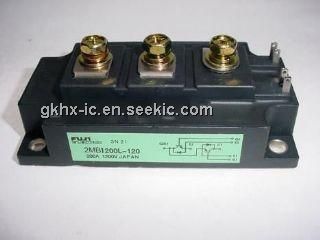

The 2MBI200L-120 is an IGBT module. Application include inverters for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines such as welding machines.

Parametrics

2MBI200L-120 absolute maximum ratings: (1)collecter-emitter voltage: 1200V; (2)gare-emitter voltage: ±20V; (3)MAX. power dissipation: 1600W; (4)operating temperature: +150℃; (5)storage temperature: -40 to +125℃; (6)isolation voltage: 2500V.

Features

2MBI200L-120 features: (1)low saturation voltage; (2)voltage drive; (3)high speed switching.

Diagrams

2MBI200L-120 equilavelent circuit schematic
