Product Summary

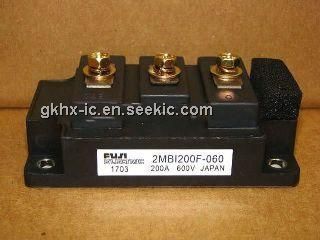

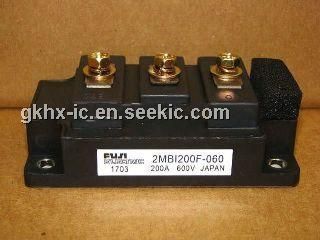

The 2MBI200F-060 is an IGBT module. Its applications include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply and industrial machines.

Parametrics

2MBI200F-060 absolute maximum ratings: (1)collecter-emitter voltage: 600V; (2)gate-emitter voltage: ±20V; (3)max. power dissipation: 720W; (4)operating tempereture: +150℃; (5)storage temperature: -40~+125℃; (6)isolation voltage: 2500V.

Features

2MBI200F-060 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.

Diagrams

2MBI200F-060 equivalent circuit schematic
