Product Summary

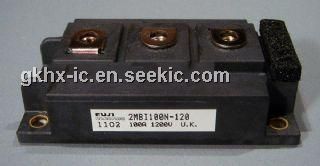

The 2MBI100N-120 is an IGBT module. Applications include High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
2MBI100N-120 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200 V; (2)Gate -Emitter Voltage: ± 20 V; (3)Max. Power Dissipation: 780 W; (4)Operating Temperature: +150℃; (5)Storage Temperature: -40 ~ +125℃; (6)Isolation Voltage: 2500 V.
Features
2MBI100N-120 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).
Diagrams
