Product Summary
The XCV300E6PQ240C is a high-density configuration PROM. The XCV300E6PQ240C provides an easy-to-use, costeffective method for storing large Xilinx FPGA configuration bitstreams. The XCV300E6PQ240C is available in 16 Mb, 8 Mb, 4 Mb, 2 Mb, and 1 Mb densities. The XCV300E6PQ240C can configure a Xilinx FPGA using the FPGA serial configuration mode interface. When the FPGA is in Master Serial mode, the XCV300E6PQ240C generates a configuration clock that drives the PROM.
Parametrics
XCV300E6PQ240C absolute maximum ratings: (1)VCC Supply voltage relative to GND: –0.5 to +7.0 V; (2)VPP Supply voltage relative to GND: –0.5 to +12.5 V; (3)VIN Input voltage relative to GND: –0.5 to VCC +0.5 V; (4)VTS Voltage applied to High-Z output: –0.5 to VCC +0.5 V; (5)TSTG Storage temperature (ambient): –65 to +150 ℃; (6)TJ Junction temperature: +125 ℃.
Features
XCV300E6PQ240C features: (1)One-time programmable (OTP) read-only memory designed to store configuration bitstreams of Xilinx FPGA devices; (2)Simple interface to the FPGA; (3)Cascadable for storing longer or multiple bitstreams; (4)Programmable reset polarity (active High or active Low) for compatibility with different FPGA solutions; (5)Low-power CMOS floating-gate process; (6)3.3V supply voltage; (7)Guaranteed 20 year life data retention; (8)Available in compact plastic packages: VQ44, PC44, PC20, VO8, and SO20; (9)Programming support by leading programmer manufacturers.

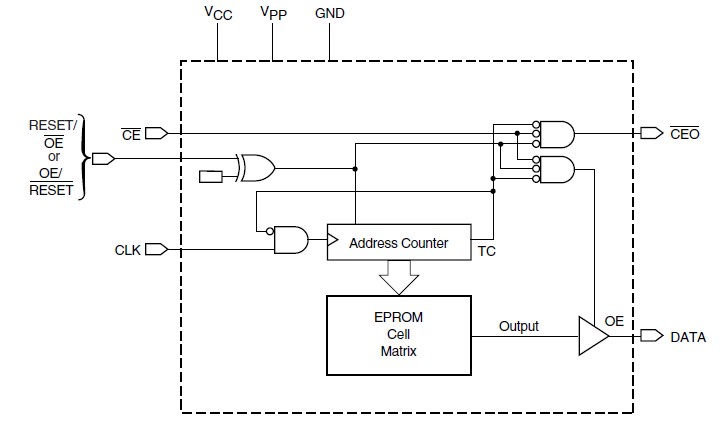

Diagrams
