Product Summary
The UR133-3.3V-A-GOI is a 300/500mA fixed output voltage low dropout linear regulator. Wide range of available output voltage fits most of applications. Built-in output current-limiting most thermal-limiting provide maximal protection against any fault conditions.
Parametrics
UR133-3.3V-A-GOI absolute maximum ratings: (1)Input Voltage VIN: -0.3V to +12V; (2)Power Dissipation: SOT-89: 500mW, TO-92: 600mW, SOT-223: 800mW; (3)Operating Temperature TOPR: -40℃ t +85℃; (4)Storage Temperature TSTG: -65℃ to +150℃.
Features
UR133-3.3V-A-GOI features: (1)Guaranteed 300/500mA output current; (2)Input voltage range up to 12V; (3)Extremely tight load regulation; (4)Fast transient response; (5)Current-limiting and Thermal-limiting; (6)Three-terminal adjustable or fixed 1.5V, 1.8V, 2.2V, 2.5V, 2.7V, 2.8V, 2.9V,3.0V, 3.3V, 3.5V, 3.6V, 3.7V, 4.7V, 5.0V.

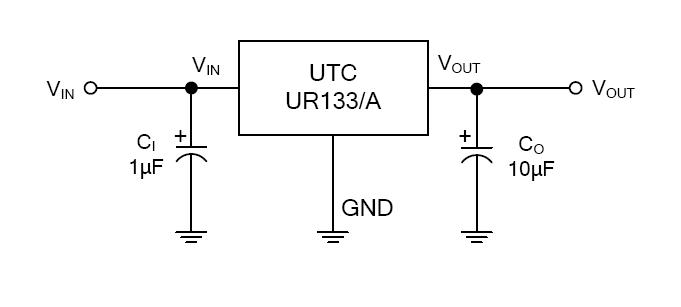

Diagrams
 |
