TXS0108EPWR

TXS0108EPWR, 8-bit noninverting translator, TSSOP, -0.5V to 4.6V, -50mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1000 ~ 1000 :	2.00 / Piece

PartNumber:: TXS0108EPWR

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-30

From Other Seller

Part Number:TXS0108EPWR
US $2.00 - 2.00
Quantity:

piece

Product Summary

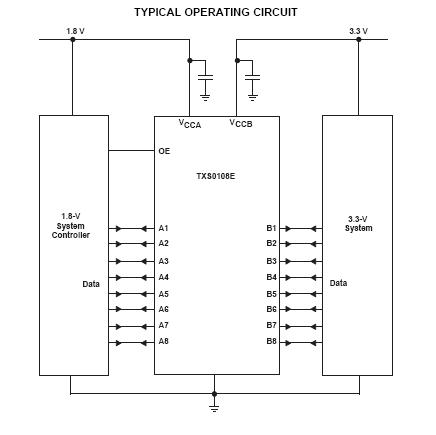

The TXS0108EPWR is an 8-bit noninverting translator. It uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. The TXS0108EPWRallows for low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

Parametrics

TXS0108EPWR absolute maximum ratings: (1)VCCA Supply voltage range: –0.5 to 4.6 V; (2)VCCB Supply voltage range: –0.5 to 5.5 V; (3)A port: –0.5 to 4.6V; (4)VI Input voltage range(2) B port: –0.5 to 6.5V; (5)VO Voltage range applied to any output in the high or low state(2) (3) B port: –0.5 to VCCB + 0.5V; (6)IIK Input clamp current VI＜0:–50mA; (7)IOK Output clamp current VO＜0: –50mA; (8)IO Continuous output current: ±50mA; (9)Continuous current through VCCA, VCCB, or GND: ±100mA; (10)Tstg Storage temperature range: –65 to 150℃.

Features

TXS0108EPWR features: (1)1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA≤VCCB); (2)VCC Isolation Feature – If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State; (3)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (4)ESD Protection Exceeds JESD 22 (A Port); (5)2000-V Human-Body Model (A114-B); (6)150-V Machine Model (A115-A); (7)IEC 61000-4-2 ESD (B Port); (8)±8-kV Contact Discharge; (9)±6-kV Air-Gap Discharge.
