Product Summary
The TPS60255RTER is a high-efficiency, constant frequency charge pump DC/DC converter that uses 1x and 1.5x conversion to maximize efficiency for the input voltage range. By using adaptive 1x/1.5x charge-pump modes and very low dropout current regulators, The TPS60255RTER achieves high efficiency for the entire one-cell lithium battery range. The protection features include soft start, over-current limit, thermal shut down, and over-voltage detection. The TPS60255RTER automatically detects and removes unused current sinks from the control loop. The applications of the TPS60255RTER include Cellular Phones, Portable Navigation Displays, and Multi-display Handheld Devices.
Parametrics
TPS60255RTER absolute maximum ratings: (1)VI Input voltage range (all pins): –0.3 to 7 V; (2)HBM ESD Rating (2): 2 kV; (3)CDM ESD Rating(3): 500 V; (4)MM ESD Rating(4): 200 V; (5)TA Operating temperature range: –40 to 85℃; (6)TJ Maximum operating junction temperature: 150℃; (7)TST Storage temperature: –55 to 150℃.
Features
TPS60255RTER features: (1)2.7 V to 6.0 V Input Voltage Range; (2)1x and 5x Charge pump; (3)Auto Switching Between 1× and 1.5× Modes; (4)25mA max LED Current for Six Current Sinks; (5)One 80mA Current Sink; (6)Open WLED Detection; (7)Built-in Soft Start and Current Limit; (8)750 kHz Charge Pump Frequency; (9)Seven Individually-regulated WLED Current Sinks; (10)16-pin 3mm x 3mm QFN package.

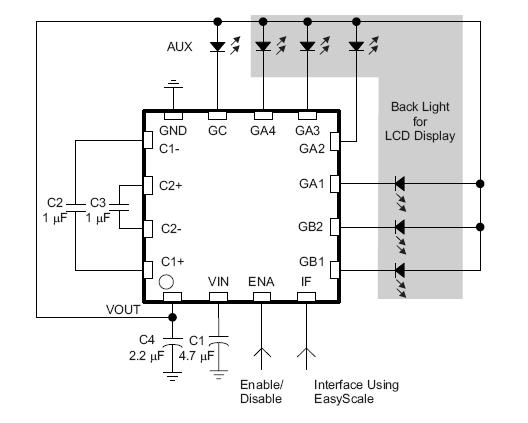

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() TPS60255RTER |
![]() Texas Instruments |
![]() LED Lighting Drivers 7Ch High Eff 175 mA Charge Pump |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() TPS60255RTERG4 |
![]() Texas Instruments |
![]() LED Lighting Drivers 7Ch Hi Eff 175mA Charge Pump |
![]() Data Sheet |
![]()
|
|
