Product Summary
The TC7W32F is a Dual 2-Input OR Gate.
Parametrics
TC7W32F absolute maximum ratings: (1)Supply voltage VCC: -0.5 to 7.0 V; (2)DC input voltage VIN: -0.5 to VCC + 0.5 V; (3)DC output voltage VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current IIK: ±20mA; (5)Output diode current IOK: ±20mA; (6)DC output current IOUT: ±25mA; (7)DC VCC/ground current ICC: ±25mA; (8)Power dissipation PD: 200mW (US8); (9)Storage temperature Tstg: -65 to 150℃; (10)Lead temperature (10 s) TL: 260℃.
Features
TC7W32F features: (1)High Speed : tpd = 6ns (typ.) at VCC = 5V; (2)Low power dissipation : ICC = 1μA (max) at Ta = 25℃; (3)High noise immunity : VNIH = VNIL = 28% VCC (min); (4)Output drive capability : 10 LSTTL Loads; (5)Symmetrical Output Impedance : |IOH| = IOL= 4mA (min); (6)Balanced propagation delays ; (7)Wide operating voltage range : VCC = 2 to 6V.

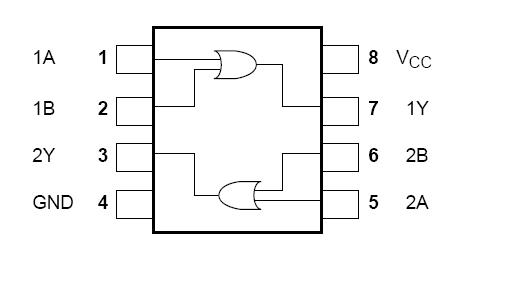

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TC7W32F(TE12L) |
|
IC GATE OR DUAL 2INPUT 8-SOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TC7W32F(TE12L,F) |
|
IC GATE OR DUAL 2INPUT 8-SOP |
Data Sheet |
|
|
||||||||||||||||||
 |
TC7W32FKTE85LF |
Toshiba |
Gates (AND / NAND / OR / NOR) 2-Input OR Gate 8Pin |
Data Sheet |
|
|
||||||||||||||||||
|
TC7W32FK(TE85L) |
|
IC GATE OR DUAL 2INPUT 8-SSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TC7W32FK(TE85L,F) |
|
IC GATE OR DUAL 2INPUT 8-SSOP |
Data Sheet |
|
|
||||||||||||||||||
|
TC7W32FU(TE12L) |
|
IC GATE OR DUAL 2INPUT 8-SSOP |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
TC7W32FUTE12LF |
Toshiba |
Gates (AND / NAND / OR / NOR) 2-Input OR Gate 8Pin |
Data Sheet |
|
|
||||||||||||||||||
|
TC7W32FU(TE12L,F) |
|
IC GATE OR DUAL 2INPUT 8-SSOP |
Data Sheet |
|
|
||||||||||||||||||
