Product Summary
The PTH08T220WAS is a high-performance 16-A rated, non-isolated power module. The PTH08T220WAS represents the 2nd generation of the popular PTH series power modules and include a reduced footprint and improved features. The PTH08T220WAS is optimized to be used with all ceramic capacitors. The applications of the PTH08T220WAS include Complex Multi-Voltage Systems, Microprocessors, and Bus drivers.
Parametrics
PTH08T220WAS absolute maximum ratings: (1)Vtrack Track pin voltage: –0.3 to VI + 0.3 V; (2)TA Operating temperature range Over VI range: –40 to 85℃; (3)Twave Wave soldering temperature: 260℃; (4)Tstg Storage temperature:–55 to 125℃; (5)Tpkg Packaging temperature Shipping Tray or Tape and Reel storage or bake temperature: 45℃; (6)Mechanical shock Per Mil-STD-883D, Method 2002.3 1 msec, 1/2 AH and AD suffix: 500G; (7)sine, mounted AS and AZ suffix: 125G; (8)Mechanical vibration Mil-STD-883D, Method 2007.2 20-2000 Hz: 20G; (9)Weight: 5 grams.
Features
PTH08T220WAS features: (1)Up to 16-A Output Current; (2)TurboTrans. Technology; (3)4.5-V to 14-V Input Voltage; (4)Designed to meet Ultra-Fast Transient; (5)Wide-Output Voltage Adjust (0.69 V to 5.5 V) Requirements up to 300 A/ms; (6)±1.5% Total Output Voltage Variation; (7)SmartSync Technology; (8)Efficiencies up to 96%; (9)Auto-Track. Sequencing; (10)Output Overcurrent Protection (Nonlatching, Auto-Reset); (11)Operating Temperature: –40°C to 85°C; (12)Safety Agency Approvals: – UL/IEC/CSA-C22.2 60950-1; (13)Prebias Startup; (14)On/Off Inhibit; (15)Differential Output Voltage Remote Sense; (16)Adjustable Undervoltage Lockout; (17)Ceramic Capacitor Version (PTH08T221W); (18)POLA Compatible.

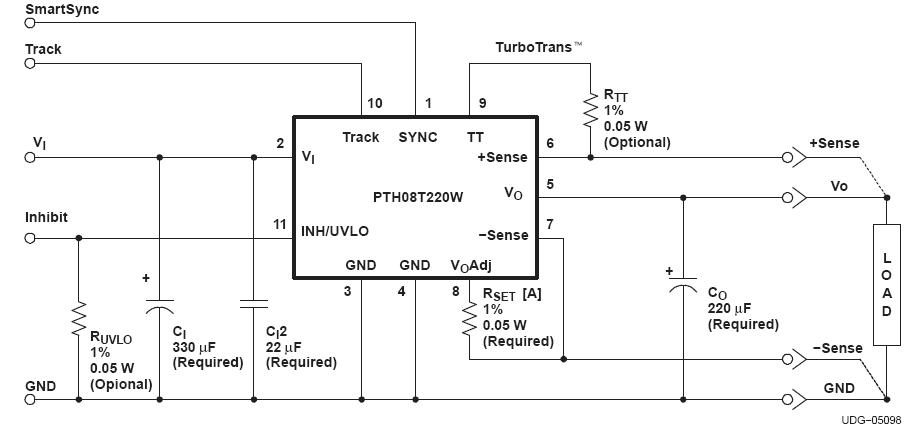

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PTH08T220WAS |
Texas Instruments |
DC/DC Converters 16A 4.5-14V-Input Wide-Out Adj Pwr Mdl |
Data Sheet |
|
|
|||||||||||||
PTH08T220WAST |
Texas Instruments |
DC/DC Converters 16A 4.5-14V-Input Wide-Out Adj Pwr Mdl |
Data Sheet |
|
|
