MSP430F2350IRHAR

MSP430F2350IRHAR, ultralow-power microcontroller, QFN, -0.3V to 4.1V, ±2 mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1000 ~ 1000 :	4.00 / Piece

PartNumber:: MSP430F2350IRHAR

Brand:: Texas Instruments - TI | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-27

From Other Seller

Part Number:MSP430F2350IRHAR
US $4.00 - 4.00
Quantity:

piece

Product Summary

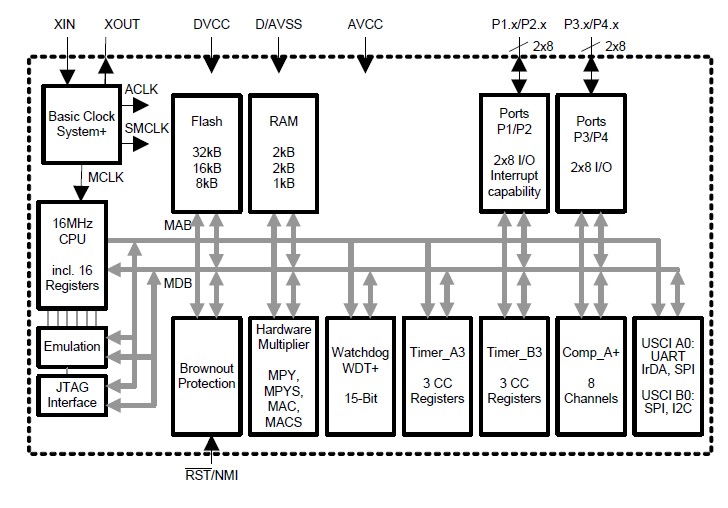

The MSP430F2350IRHAR is an ultralow-power microcontroller. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portablemeasurement applications. The MSP430F2350IRHAR features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contributes to maximum code efficiency.The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 μs.

Parametrics

MSP430F2350IRHAR absolute maximum ratings: (1)Voltage applied at VCC to VSS: -0.3 V to + 4.1 V; (2)Voltage applied to any pin: -0.3 V to VCC+0.3 V; (3)Diode current at any device terminal: ±2 mA; (4)Storage temperature (unprogrammed device): -55℃ to 150℃; (5)Storage temperature (programmed device): -40℃ to 105℃.

Features

MSP430F2350IRHAR features: (1)Low Supply-Voltage Range, 1.8 V to 3.6 V; (2)Ultrafast Wake-Up From Standby Mode in Less Than 1 μs; (3)16-Bit RISC Architecture, 62.5 ns Instruction Cycle Time; (4)Hardware Multiplier; (5)16-Bit Timer_A With Three Capture/Compare Registers; (6)16-Bit Timer_B With Three Capture/Compare Registers; (7)On-Chip Comparator for Analog Signal Compare Function or Slope A/D Conversion; (8)Brownout Detector; (9)Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse.
