Product Summary

The MAX706EPA is a microprocessor (μP) supervisory circuit. It is significantly improves system reliability and accuracy compared to separate ICs or discrete components. The MAX706EPA is available in 8-pin SO, DIP, and µ AX packages and are fully specified over the operating temperature range. The applications of the MAX706EPA are Battery-Powered Equipment, Portable Instruments, Computers, Controllers, Intelligent Instruments, and Critical uP Power Monitoring.

Parametrics

MAX706EPA absolute maximum ratings: (1)Terminal Voltage (with respect to GND):-0.3V to +6V; (2)All Other Inputs:-0.3V to (VCC + 0.3V); (3)Input Current:VCC:20mA, GND:20mA; (4)Output Current (all outputs):20mA; (5)Continuous Power Dissipation:470.6mW; (6)Operating Temperature Range:-40℃ to +85℃; (7)Junction Temperature:+150℃; (8)Storage Temperature Range:-65℃ to +150℃; (9)Lead Temperature (soldering, 10s):+300℃.

Features

MAX706EPA features: (1)μMAX Package, Small 8-Pin SO; (2)Precision Supply-Voltage Monitors:3.08V; (3)200ms Reset Time Delay; (4)Debounced TTL/CMOS-Compatible Manual Reset Input; (5)100μA Quiescent Current; (6)Watchdog Timer: 1.6s Timeout; (7)Reset Output Signal: Active-Low Only; (8)Voltage Monitor for Power-Fail or Low-Battery Warning; (9)8-Pin Surface-Mount Package; (10)Guaranteed RESET Assertion to VCC = 1V.

Diagrams

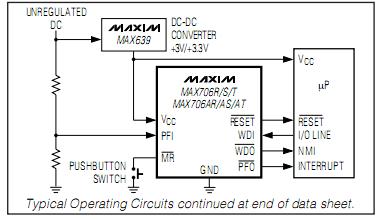

MAX706EPA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX706EPA
MAX706EPA
Maxim Integrated Products
Supervisory Circuits
Data Sheet
Negotiable
MAX706EPA+
MAX706EPA+
Maxim Integrated Products
Supervisory Circuits Single uPower Supervisor
Data Sheet
0-1: $4.88
1-25: $3.28
25-50: $2.38
50-100: $2.35
