Product Summary
The MAX6820UT+T is a SOT23 Power-Supply Sequencer for dual-voltage microprocessors (μPs) and multivoltage systems. The MAX6820UT+T monitors a primary supply voltage and enable/disable an external n-channel MOSFET switch for a secondary supply voltage. The MAX6820UT+T control local component voltage sequencing when system power-on/power-off characteristics cannot be guaranteed (supplies come from a multivoltage system bus, silver box, or must be sequenced in different modes for components on the same board). These small power-supply sequencers improve system reliability. The applications of the MAX6820UT+T include Dual-Voltage Microprocessors, Multivoltage Systems, Digital Signal Processors, and Power PC Series Processors.
Parametrics
MAX6820UT+T absolute maximum ratings: (1)VCC1, VCC2, EN: -0.3V to +6.0V; (2)SETV, SETD: -0.3V to the higher of (VCC1 + 0.3V) and (VCC2 + 0.3V); (3)GATE: -0.3V to +12.0V; (4)Input Current/Output Current (all pins): 20mA; (5)Continuous Power Dissipation (TA = +70℃) 6-Pin SOT23 (derate 8.7mW/℃ above +70℃): 696mW; (6)Operating Temperature Range: -40℃ to +125℃; (7)Junction Temperature: +150℃; (8)Storage Temperature Range: -65°C to +150℃; (9)Lead Temperature (soldering 10s): +300℃.
Features
MAX6820UT+T features: (1)Adjustable Primary Supply Voltage Monitor (Monitors Down to 0.62V); (2)Internal Charge Pump to Enhance External Secondary Supply n-Channel MOSFET Switch; (3)Delay from Primary Supply Good to Secondary Supply Enabled; (4)Factory Fixed 200ms (MAX6819); (5)Capacitor Adjustable (MAX6820); (6)Logic Driven ENABLE Input (MAX6819); (7)Immune to Short Voltage Transients; (8)Few External Components; (9)-40℃ to +125℃ Operating Temperature Range; (10) Small 6-Pin SOT23 Package.

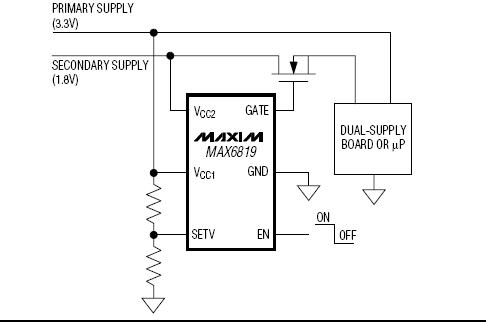

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX6820UT+T |
Maxim Integrated Products |
Supervisory Circuits Power-Supply Sequencer |
Data Sheet |
|
|
||||||||||||
