Product Summary

The LQW15AN4N7B00D is an air core chip coil using a miniature alumina core. The tight inductance tolerance (±0.2nH, ±3%) is available due to Murata’s original wound technology. The LQW15AN4N7B00D has high Q value in high frequency range and high self resonant frequency. The LQW15AN4N7B00D is suitable for high frequency circuits which are used in telecommunications equipment. The applications of the LQW15AN4N7B00D include High frequency circuits of mobile phones such as PA, ANT, VCO, SAW, etc, Mobile phones such as GSM, CDMA, PDC, etc, "Bluetooth", W-LAN, High frequency circuits in general.

Parametrics

LQW15AN4N7B00D absolute maximum ratings: (1)Inductance: 4.1±0.1nH; (2)Test Frequency: 100MHz; (3)Rated Current: 750mA; (4)DC Resistance: 0.07ohm max; (5)Q: 25 minutes; (6)Self Resonance Frequency (min.): 10.0GHz; (7)EIA: 0402.

Features

LQW15AN4N7B00D features: (1)Horizontal wound structure enables tight inductance tolerance (±0.2nH, ±3%) And tolerance of ±0.1nH, ±2% is available; (2)Wide variation in inductance value; (3)The subminiature dimensions (1.0x0.5mm) allow high density mounting; (4)The high self resonant frequency realizes high Q value and stable inductance at high frequency; (5)Low DC resistance design is ideal for low loss, high output and low power consumption; (6)Resin-coated surface enables excellent mounting.

Diagrams

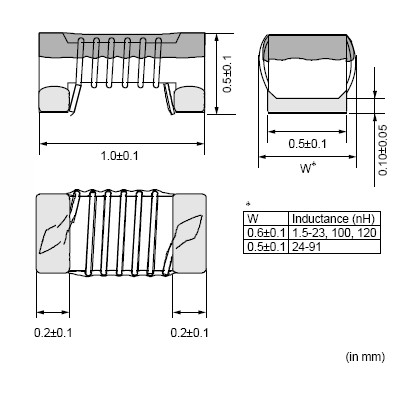

LQW15AN4N7B00D dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LQW15AN4N7B00D
LQW15AN4N7B00D
Murata
RF Inductors 4.7 NH +-.1NH
Data Sheet
0-1: $0.17
1-10000: $0.08
10000-20000: $0.08
20000-30000: $0.07
