Product Summary

The LM4040AEM3-5.0+T is a precision two-terminal shunt mode, bandgap voltage reference available in fixed reverse breakdown voltages of 2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V. Ideal for space-critical applications, the LM4040AEM3-5.0+T is offered in the subminiature 3-pin SC70 surface-mount package (1.8mm×1.8mm), 50% smaller than comparable devices in SOT23 surfacemount packages (SOT23 versions are also available). The applications of the LM4040AEM3-5.0+T include Portable, Battery-Powered Equipment, Notebook Computers, Cell Phones, and Industrial Process Controls.

Parametrics

LM4040AEM3-5.0+T absolute maximum ratings: (1)Reverse Current (cathode to anode): 20mA; (2)Forward Current (anode to cathode): 10mA; (3)Continuous Power Dissipation (TA = +70℃); (4)3-Pin SC70 (derate 2.17mW/°C above +70℃): 174mW; (5)3-Pin SOT23 (derate 4.01mW/°C above +70℃): 320mW; (6)Operating Temperature Range: -40℃ to +125℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Junction Temperature: +150℃; (9)Lead Temperature (soldering, 10s): +300℃; (10)Soldering Temperature (reflow): +260℃.

Features

LM4040AEM3-5.0+T features: (1)Ultra-Small 3-Pin SC70 Package; (2)0.1% (max) Initial Accuracy; (3)100ppm/℃ (max) Temperature Coefficient Guaranteed over -40℃ to +125℃ Temperature Range; (4)Wide Operating Current Range: 60μA to 15mA; (5)Low 28μVRMS Output Noise (10Hz to 10kHz); (6)2.048V, 2.500V, 3.000V, 3.3V, 4.096V, and 5.000V Fixed Reverse Breakdown Voltages; (7)No Output Capacitors Required; (8)Tolerates Capacitive Loads.

Diagrams

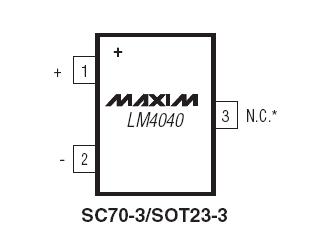

LM4040AEM3-5.0+T Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM4040AEM3-5.0+T
LM4040AEM3-5.0+T
Maxim Integrated Products
Voltage & Current References uPower Shunt V-Ref w/Mult Brkdwn V
Data Sheet
0-2080: $0.50
2080-2500: $0.50
