LM358

Product Summary

The LM358 is a dual operational amplifier. The LM358 consists of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2904), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage. Applications of the LM358 include transducer amplifiers, dc amplification blocks, and all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems. For example, the LM358 can be operated directly from the standard 5-V supply used in digital systems and easily can provide the required interface electronics without additional ±5V supplies.

Parametrics

LM358 absolute maximum ratings: (1)Supply voltage, VCC: ±16 or 32V; (2)Differential input voltage, VID: ±32V; (3)Input voltage, VI (either input): -0.3V to 32V; (4)Duration of output short circuit (one amplifier) to ground at (or below) 25℃ free-air temperature (VCC≤15V): Unlimited; (5)Package thermal impedance, θJA D package: 97℃/W; (6)DGK package: 172℃/W; (7)P package: 85℃/W; (8)PS package: 95℃/W; (9)PW package: 149℃/W; (10)FK package: 5.61℃/W; (11)JG package: 14.5℃/W; (12)Operating free-air temperature range, TA: 0 to 70℃; (13)Operating virtual junction temperature, TJ: 150℃; (14)Case temperature for 60 seconds FK package: 260℃; (15)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds JG package: 300℃; (16)Storage temperature range, Tstg: -65 to 150℃.

Features

LM358 features: (1)Wide Supply Range; (2)Low Supply-Current Drain, Independent of Supply Voltage: 0.7mA Typ; (3)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground; (4)Low Input Bias and Offset Parameters; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32V (26 V for LM2904); (6)Open-Loop Differential Voltage Amplification 100V/mV Typ; (7)Internal Frequency Compensation.

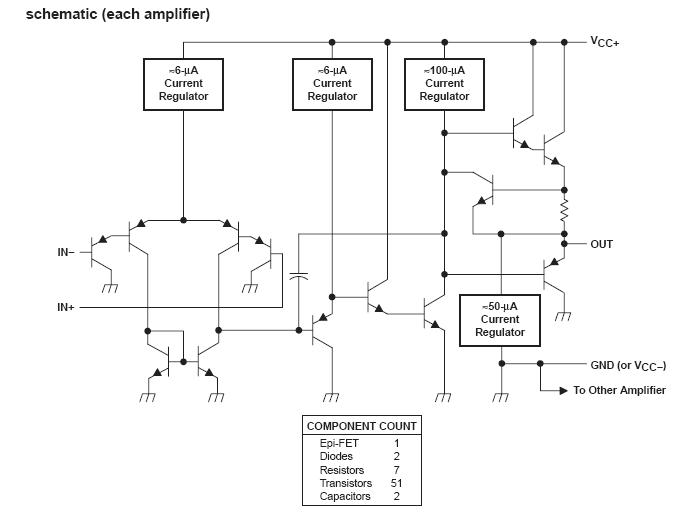

Diagrams
