Product Summary

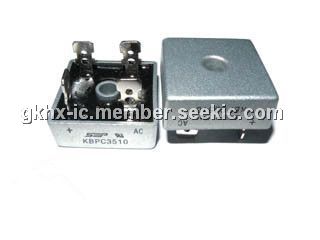

The KBPC3510 is a 35AMP silicon bridge rectifier.
Parametrics
KBPC3510 absolute maximum ratings: (1)Maximum recurrent peak reverse voltage VRRM: 1000V; (2)Maximum RMS voltage VRMS: 700V; (3)Maximum DC blocking voltage VDC: 1000V; (4)Maximum average forward output current @ Tc=55℃ I(AV): 35.0A; (5)Peak forward surge current 8.3ms single half-sine-wave superimposed on rated load(JEDEC method) IFSM: 400A; (6)Maximum forward voltage per bridge element at 17.5A DC VF: 1.2V; (7)Maximum DC reverse current at rated @ TA=25℃ IR: 10μA; (8)I2t rating for fusing(t<8.3ms) I2t: 664A2S; (9)Typical thermal resistance RTHJC: 2.5℃/W; (10)Operating temperature range Tj: -55 to +125℃; (11)Storage temperature range Tstg: -55 to +150℃.
Features
KBPC3510 features: (1)Rating to 1000V PRV; (2)400 Amperes surge capability; (3)High efficiency; (4)Electrically isolated metal case for maximum heat dissipation; (5)UL recognized: File #E106441.

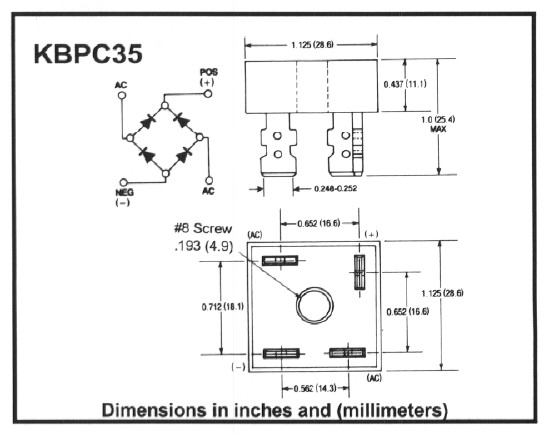

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KBPC3510 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
KBPC3510FW |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
KBPC3510W-G |
Comchip Technology |
Bridge Rectifiers DIODE RECT BRIDGE 35A 1Kv |
Data Sheet |
|
|
||||||||||||
|
KBPC3510-G |
Comchip Technology |
Bridge Rectifiers DIODE RECT BRIDGE 35A 1000V |
Data Sheet |
|
|
||||||||||||
|
KBPC3510W |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
