Product Summary

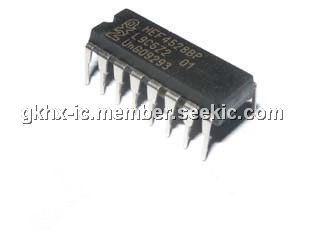

The HEF4528BP is a dual retriggerable-resettable monostable multivibrator. Each multivibrator has an active LOW input (I0), and active HIGH input (I1), an active LOW clear direct input (CD), an output (O) and its complement (O), and two pins for connecting the external timing components (CTC (1), RCTC). The applications of the HEF4528BP include Industrial.
Parametrics
HEF4528BP absolute maximum ratings: (1)supply voltage: -0.5 to +18 V; (2)input clamping current: ±10mA at VI < -0.5 V or VI > VDD + 0.5 V; (3)input voltage: -0.5 VDD + 0.5 V; (4)output clamping current: ±10mA at VI < -0.5 V or VI > VDD + 0.5 V; (5)input/output current: ±10mA; (6)supply current: 50mA; (7)storage temperature: -65 to +150 ℃; (8)ambient temperature: -40 to +85 ℃; (9)total power dissipation Tamb = -40 ℃ to +85 ℃: DIP16 package: 750mW, SO16 package: 500mW; (10) power dissipation per output: 100mW.
Features
HEF4528BP features: (1)Fully static operation; (2)5 V, 10 V, and 15 V parametric ratings; (3)Standardized symmetrical output characteristics; (4)Operates across the automotive temperature range -40 ℃ to +85 ℃; (5) Complies with JEDEC standard JESD 13-B.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HEF4528BP,652 |
NXP Semiconductors |
Monostable Multivibrator DUAL MONOSTABLE |
Data Sheet |
|
|
||||||||||||
|
HEF4528BPN |
NXP Semiconductors |
Monostable Multivibrator DUAL MONOSTABLE MULTIVIBRATOR |
Data Sheet |
Negotiable |
|
||||||||||||
