GC5328IZER

GC5328IZER, Low power, wideband digital Predistortion Transmit Processor, BGA, -0.3V to 1.32V, ±100mA, 20MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $82.00~82.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
500 ~ 500 :	82.00 / Piece

PartNumber:: GC5328IZER

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-22

From Other Seller

Part Number:GC5328IZER
US $82.00 - 82.00
Quantity:

piece

Product Summary

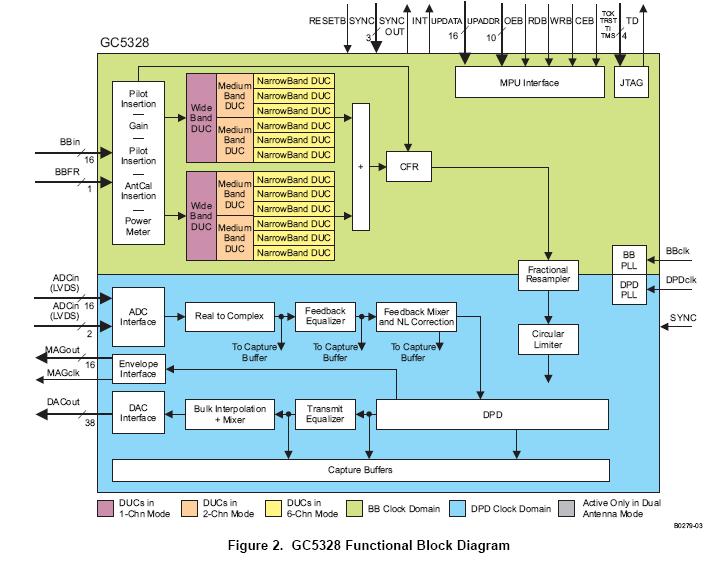

The GC5328IZER is a Low power wideband digital Predistortion Transmit Processor. The GC5328IZER includes a digital upconverter (DUC) block, a crest factor reduction (CFR) block, a digital predistortion (DPD) block, feedback (FB) block, and capture buffer (CB) blocks. The applications of the GC5328IZER include 3 GPP (W-CDMA) Base Stations, 3 GPP2 (CDMA2000) Base Stations, WiMAX, WiBRO, and LTE (OFDMA) Base Stations, Multicarrier Power Amplifiers (MCPAs).

Parametrics

GC5328IZER absolute maximum ratings: (1)VDD, VDDA Core supply voltage: –0.3 to 1.32 V; (2)VDDS Digital supply voltage for TX: –0.3 to 2 V; (3)VDDSHV Digital supply voltage: –0.3 to 3.6 V; (4)VIN Input voltage (under/overshoot): –0.5 to VDDSHV + 0.5 V; (5)Clamp current for an input/output: –20 to 20 mA; (6)Tstg Storage temperature: –65 to 150℃; (7)Lead soldering temperature, 10 seconds: 300℃; (8)ESD classification Class 2 (Required 2-kV HBM, 500-V CDM); (9)(Passed 2.5-kV HBM, 500-V CDM, 200-V MM); (10)Moisture sensitivity Class 3 (floor life at 30℃/60% H): 1 week; (11)Reflow conditions JEDEC standard: 260℃; (12)Latchup JEDEC Level 2 per JEDEC 78 standard (at 90℃ and 1.5× Vmax): ±100mA.
