Product Summary

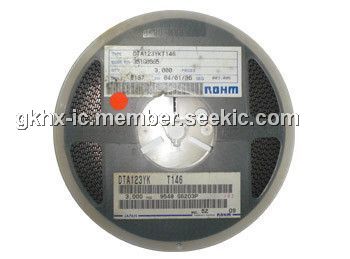

The DTA123YK-T146 is a Digital transistor.

Parametrics

DTA123YK-T146 absolute maximum ratings: (1)Supply voltage: -50V; (2)Input voltage: -12 to +5V; (3)Output current: -100mA; (4)Power Dissipation: 200mW; (5)Junction temperature: 150℃; (6)Storage temperature: -55 to 150℃.

Features

DTA123YK-T146 features: (1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit); (2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3) Only the on/off conditions need to be set for operation, making device design easy.

Diagrams

DTA123YK-T146 block diagram
