Product Summary

The CXA1003BM is a Low Power FMIF amplifier. The functions of the CXA1003BM include second mixer and oscillation circuit, IF amplifier and limiter, RSSI, FM detecting circuit, Muting circuit.

Parametrics

CXA1003BM absolute maximum ratings: (1)Supply Voltage: 17V; (2)Operating temperature: -35 to +85; (3)Storage temperature: -55 to +150; (4)Allowable power dissipation: 780mW.

Features

CXA1003BM features: (1) It includes all the functions needed to the cellular mobile such as second mixer, FM detecting circuit, muting circuit, RSSI, etc; (2) It has wide operating voltage (4.5V to 9.5V) and low current consumption; (3) It includes the audio output buffer, so it needs small number of peripheral parts; (4) It has wide RSSI range and excellent temperature characteristics.

Diagrams

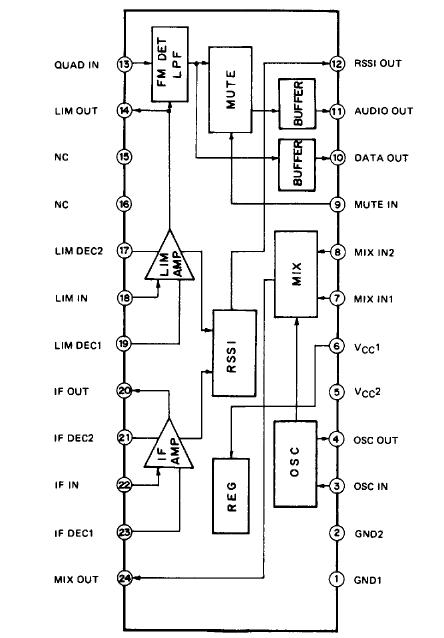

CXA1003BM block diagram
