Product Summary

The CR08AS-8-C-T1 is a Thyristor. The applications of the CR08AS-8-C-T1 include Solid state relay, strobe flasher, ignitor, hybrid IC.

Parametrics

CR08AS-8-C-T1 absolute maximum ratings: (1)Repetitive peak reverse voltage: 400V; (2)Non-repetitive peak reverse voltage: 500V; (3)DC reverse voltage: 320V; (4)Repetitive peak off-state voltage: 400V; (5)DC off-state voltage: 320V; (6)RMS on-state current: 1.26A; (7)Average on-state current: 0.8A; (8)Surge on-state current: 10A; (9)I2t for fusing: 0.42 A2S; (10)Peak gate power dissipation: 0.5W; (11)Average gate power dissipation: 0.1W; (12)Peak gate forward voltage: 6V; (13)Peak gate reverse voltage: 6V; (14)Peak gate forward current: 0.3A; (15)Junction temperature: -40 to +125℃; (16)Storage temperature: -40 to +125℃; (17)Weight: 48mg.

Features

CR08AS-8-C-T1 features: (1)IT (AV): 0.8A; (2)VDRM: 400V/600V; (3)IGT: 100mA.

Diagrams

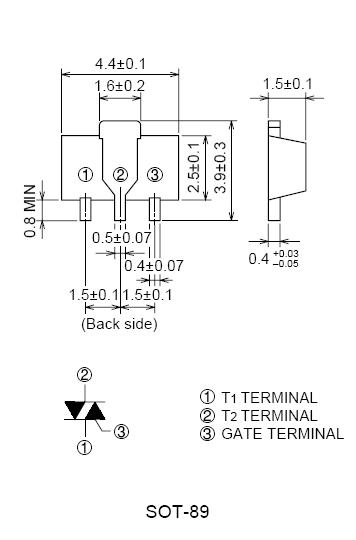

CR08AS-8-C-T1 dimension

CR08
CR08
