CCBTLV3861IPWRQ1

CCBTLV3861IPWRQ1, low voltage 10-bit FET bus switch, TSSOP, -0.5V to 4.6V, 50mA, 128mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~0.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 100 :	0.40 / Piece

PartNumber:: CCBTLV3861IPWRQ1

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-28

From Other Seller

Part Number:CCBTLV3861IPWRQ1
US $0.40 - 0.40
Quantity:

piece

Product Summary

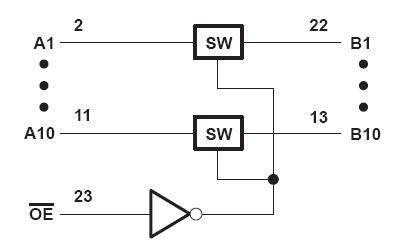

The CCBTLV3861IPWRQ1 is a low voltage 10-bit FET bus switch. The CCBTLV3861IPWRQ1 provides ten bits of high-speed bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay. The CCBTLV3861IPWRQ1 is organized as one 10-bit bus switch. When output enable (OE) is low, the 10-bit bus switch is on, and port A is connected to port B. When OE is high, the switch is open, and the high-impedance state exists between the two ports.

Parametrics

CCBTLV3861IPWRQ1 absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 4.6 V; (2)Input voltage range, VI (see Note 1): -0.5 V to 4.6 V; (3)Continuous channel current: 128mA; (4)Input clamp current, IIK (VI/O＜0): 50mA; (5)Package thermal impedance, θJA (see Note 2): DW package: 46℃/W; (6)PW package: 88℃/W; (7)Storage temperature range, Tstg: -65 to 150℃.

Features

CCBTLV3861IPWRQ1 features: (1)Qualification in Accordance With AEC-Q10; (2)Qualified for Automotive Applications; (3)Customer-Specific Configuration Control Can Be Supported Along With Major-Change Approval; (4)5Ω Switch Connection Between Two Ports; (5)Rail-to-Rail Switching on Data I/O Ports; (6)Ioff Supports Partial-Power-Down Mode Operation; (7)Flowthrough Architecture Optimizes PCB Layout; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.
