Product Summary
The BA7046F-E2 is a SYNC separator IC with AFC. The BA7046F-E2 separates the synchronization signals from a video signal and output the horizontal and vertical synchronization signals (HD and VD), and the composite synchronization signal (Sync-out). The HD and VD pulse phase difference is guaranteed. The applications of the BA7046F-E2 include TVs and VCRs.
Parametrics
BA7046F-E2 absolute maximum ratings: (1)Power supply voltage: 8.0V; (2)Power dissipation: 350mW; (3)Operating temperature: -20℃ to +75℃; (4)Storage temperature: -55℃ to +125℃.
Features
BA7046F-E2 features: (1)Built-in AFC circuit; (2)HD and VD phase difference guaranteed; (3)Low power dissipation (approx. 21mW); (4)Low external parts count; (5)8-pin DIP / SOP package; (6)Horizontal free-run frequency does not require adjustment.

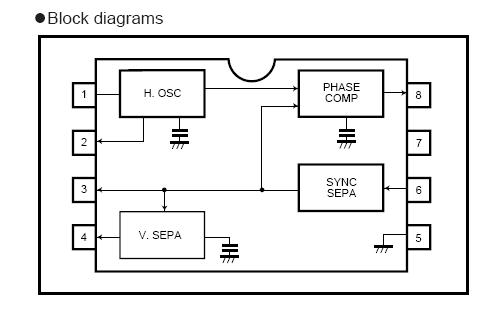

Diagrams
