AM26LV32CDR

AM26LV32CDR, low-voltage, high-speed, quadruple differential line receiver, SOP, -0.3V to 6V, ±25mA, 150pF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~0.60 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1000 ~ 1000 :	0.60 / Piece

PartNumber:: AM26LV32CDR

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-22

From Other Seller

Part Number:AM26LV32CDR
US $0.60 - 0.60
Quantity:

piece

Product Summary

The AM26LV32CDR is a low-voltage high-speed quadruple differential line receiver. The AM26LV32CDR is designed to be similar to TIA/EIA-422-B and ITU Recommendation V.11 receivers with reduced common-mode voltage range due to reduced supply voltage. The AM26LV32CDR is optimized for balanced bus transmission at switching rates up to 32 MHz. The enable function is common to all four receivers and offers a choice of active-high or active-low inputs. The 3-state outputs permit connection directly to a bus-organized system. Each device features receiver high input impedance and input hysteresis for increased noise immunity, and input sensitivity of ±200 mV over a common-mode input voltage range from .0.3 V to 5.5 V. When the inputs are open circuited, the outputs are in the high logic state.

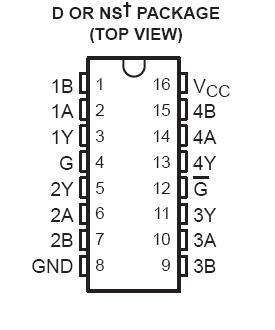

Parametrics

AM26LV32CDR absolute maximum ratings: (1)Supply voltage range, VCC (see Note 1): -0.3 V to 6 V; (2)Input voltage range, VI (A or B inputs): -4 V to 8 V; (3)Differential input voltage, VID (see Note 2): ±12 V; (4)Enable input voltage range: -0.3 V to 6 V; (5)Output voltage range, VO: -0.3 V to 6 V; (6)Maximum output current, IO:±25mA; (7)Package thermal impedance, θJA (see Note 3): D package: 73℃/W; (8)NS package: 64℃/W; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃; (10)Storage temperature range, Tstg: -65℃ to 150℃.

Features

AM26LV32CDR features: (1)Switching Rates up to 32 MHz; (2)Operates From Single 3.3V Supply; (3)Ultra-Low Power Dissipation: 27mW Typ; (4)Open-Circuit, Short-Circuit, and Terminated Fail-Safe; (5)-0.3V to 5.5V Common-Mode Range With ±200mV Sensitivity; (6)Accepts 5-V Logic Inputs With 3.3V VCC; (7)Input Hysteresis: 50mV Typ; (8)235mW With Four Receivers at 32 MHz; (9)Pin-to-Pin Compatible With AM26C32, AM26LS32, and MB570.
