Product Summary

The ADT75ARZ is a Digital Temperature Sensor which is a complete temperature monitoring system in 8-lead MSOP and SOIC packages. The ADT75ARZ contains a bandgap temperature sensor and 12-bit ADC to monitor and digitize the temperature to a resolution of 0.0625℃. The ADT75ARZ is pin and register compatible with the LM75 and AD7416.

Parametrics

ADT75ARZ absolute maximum ratings: (1)VDD to GND: –0.3 V to +7 V; (2)SDA Input Voltage to GND: –0.3 V to VDD + 0.3 V; (3)SDA Output Voltage to GND: –0.3 V to VDD + 0.3 V; (4)SCL Input Voltage to GND: –0.3 V to VDD + 0.3 V; (5)OS/ALERT Output Voltage to GND: –0.3 V to VDD + 0.3 V; (6)Operating Temperature Range: –55℃ to +150℃; (7)Storage Temperature Range: –65℃ to +160℃; (8)Maximum Junction Temperature, TJMAX: 150.7℃.

Features

ADT75ARZ features: (1)12-bit temperature-to-digital converter; (2)B grade accuracy ±1.0℃ from 0℃ to 70℃; (3)A grade accuracy ±2.0℃ from –25℃ to +100℃; (4)SMBus/I2C-compatible interface; (5)Operation from -55℃ to +125℃; (6)Operation from 3 V to 5.5 V; (7)Overtemperature indicator; (8)Shutdown mode for low power consumption; (9)Power consumption 79 μW typically at 3.3 V; (10)Small, low cost 8-pin MSOP in Pb-Sn and Pb-free packages; (11)Standard 8-pin SOIC Pb-free package.

Diagrams

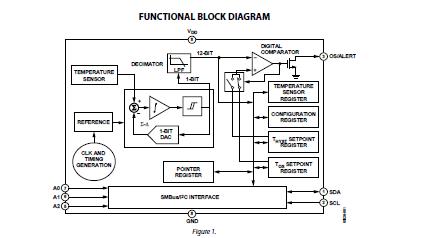

ADT75ARZ block diagram
