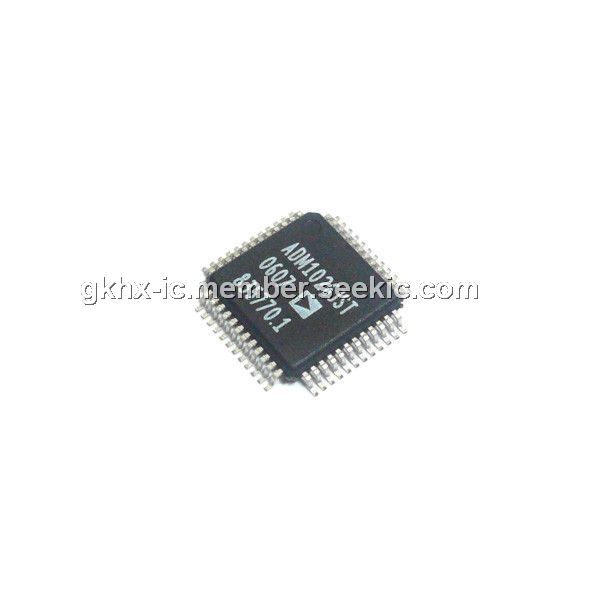

ADM1025JST

ADM1025JST, Low-Cost PC Hardware Monitor ASIC, SMD, 2000V, ±20mA, 100kΩ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~6.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~6.00

PartNumber:: ADM1025JST

Brand:: Analog Devices - ADI | Pack: SMD | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. elaine's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-12-11

From Other Seller

Part Number:ADM1025JST
US $0.01 - 6.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
TDA7360

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

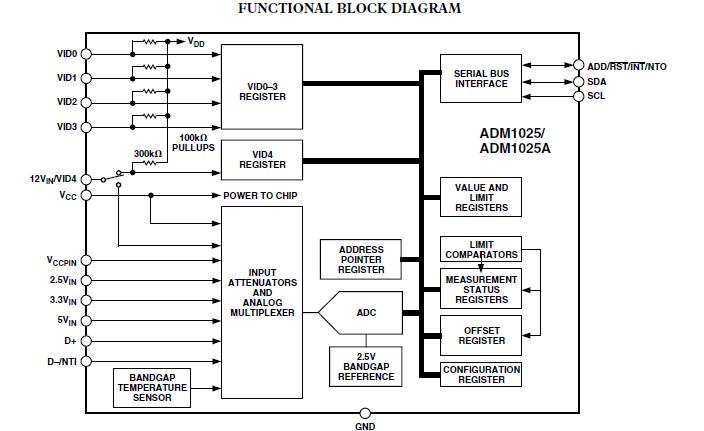

The ADM1025JST is a complete system hardware monitor for microprocessor-based systems, providing measurement and limit comparison of various system parameters. The ADM1025JST can monitor a sixth power supply voltage by measuring its own VCC. The applications of the ADM1025JST are Network Servers and Personal Computers, Microprocessor-Based Office Equipment, Test Equipment and Measuring Instruments.

Parametrics

ADM1025JST absolute maximum ratings: (1)Positive Supply Voltage (VCC): 6.5 V; (2)Voltage on 12 V VIN Pin:20 V; (3)Voltage on Any Input or Output Pin:–0.3 V to +6.5 V; (4)Input Current at Any Pin: ±5mA; (5)Package Input Current: ±20mA; (6)Maximum Junction Temperature (TJ max):150℃; (7)Storage Temperature Range:–65 to +150℃; (8)Lead Temperature, Soldering: Vapor Phase 60 sec:215℃, Infrared 15 sec:200℃; (9)ESD Rating All Pins: 2000 V.

Features

ADM1025JST features: (1)Up to Eight Measurement Channels; (2)Five Inputs to Measure Supply Voltages; (3)VCC Monitored Internally; (4)External Temperature Measurement with Remote Diode; (5)On-Chip Temperature Sensor; (6)Five Digital Inputs for VID Bits; (7)Integrated 100kΩ Pull-Ups on VID Pins; (8)LDCM Support; (9)I2C Compatible System Management Bus (SMBus); (10)Programmable RESET Output Pin; (11)Programmable INT Output Pin; (12)Configurable Offset for Internal/External Channel; (13)Shutdown Mode to Minimize Power Consumption; (14)Limit Comparison of all Monitored Values.
