AD586KRZ-REEL7

AD586KRZ-REEL7, monolithic voltage reference, SOP8, 36V, 500mW, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.20~5.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
3000 ~ 3000 :	5.20 / Piece

PartNumber:: AD586KRZ-REEL7

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. elaine's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-22

From Other Seller

Part Number:AD586KRZ-REEL7
US $5.20 - 5.20
Quantity:

piece

Product Summary

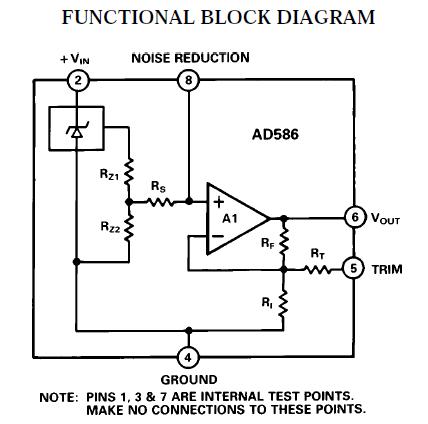

The AD586KRZ-REEL7 is a major advance in the state-of-the-art in a monolithic voltage reference. Using a proprietary ion-implanted buried Zener diode and laser wafer trimming of high stability thin-film resistors, the AD586KRZ-REEL7 provides outstanding performance at low cost. The AD586KRZ offers much higher performance than most other 5 V references. Because the AD586KRZ-REEL7 uses an industry standard pinout, many systems can be upgraded instantly with the AD586JRZ. The buried Zener approach to reference design provides lower noise and drift than bandgap voltage references. The AD586KRZ-REEL7 offers a noise reduction pin which can be used to further reduce the noise level generated by the buried Zener.

Parametrics

AD586KRZ-REEL7 absolute maximum ratings: (1)VIN to Ground: 36 V; (2)Power Dissipation (25℃): 500 mW; (3)Storage Temperature: –65℃ to +150℃; (4)Lead Temp (Soldering, 10 sec): +300℃; (5)Package Thermal Resistance: qJC: 22℃/W, θJA: 110℃/W; (6)Output Protection: Output safe for indefinite short to ground or VIN.

Features

AD586KRZ-REEL7 features: (1)Laser Trimmed to High Accuracy: 5.000 V 62.0 mV (M Grade); (2)Trimmed Temperature Coefficient: 2 ppm/℃ max, 0℃ to +70℃ (M Grade), 5 ppm/8C max, -40℃ to +85℃ (B & L Grades), 10 ppm/℃ max, -55℃ to +125℃ (T Grade); (3)Low Noise, 100 nV/√Hz; (4)Noise Reduction Capability; (5)Output Trim Capability; (6)MIL-STD-883 Compliant Versions Available; (7)Industrial Temperature Range SOICs Available; (8)Output Capable of Sourcing or Sinking 10 mA.
