Product Summary

The A3144EUA is a sensitive hall-effect switch for high-temperature operation. It is designed to operate continuously over extended temperatures to +150℃, and are more stable with both temperature and supply voltage changes. The unipolar switching characteristic makes the A3144EUA ideal for use with a simple bar or rod magnet. The A3144EUA is identical except for magnetic switch points.

Parametrics

A3144EUA absolute maximum ratings: (1)Supply Voltage, VCC: 28 V; (2)Reverse Battery Voltage, VRCC: -35 V; (3)Magnetic Flux Density, B: Unlimited; (4)Output OFF Voltage, VOUT: 28 V; (5)Reverse Output Voltage, VOUT: -0.5 V; (6)Continuous Output Current, IOUT: 25mA; (7)Operating Temperature Range, TA; (8)Suffix ‘E–’: -40℃ to +85℃; (9)Suffix ‘L–’: -40℃ to +150℃; (10)Storage Temperature Range, TS: -65℃ to +170℃.

Features

A3144EUA features: (1)Superior Temp. Stability for Automotive or Industrial Applications; (2)4.5 V to 24 V Operation: Needs Only An Unregulated Supply; (3)Open-Collector 25 mA Output: Compatible with Digital Logic; (4)Reverse Battery Protection; (5)Activate with Small, Commercially Available Permanent Magnets; (6)Solid-State Reliability; (7)Small Size; (8)Resistant to Physical Stress.

Diagrams

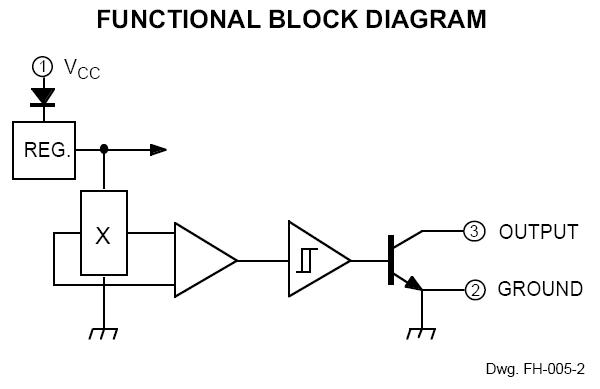

A3144EUA block diagram
