The 78M12 is a 3-Terminal Positive Voltage Regulator. The 78M12 employs built-in current limiting, thermal shutdown, and safe-operating area protection which make them virtually immune to damage from output overloads. With adequate heatsinking, the 78M12 can deliver in excess of 0.5A output current. Typical applications would include local (on-card) regulators which can eliminate the noise and degraded performance associated with single-point regulation.
Parametrics
78M12 absolute maximum ratings: (1)Lead Temperature (Soldering, 10 seconds) TO-39 Package (H): 300℃; (2)TO-220 Package (T): 260℃; (3)Storage Temperature Range: -65℃ to +150℃; (4)Operating Junction Temperature Range: -40℃ to +125℃; (5)Power Dissipation (Note 2): Internally Limited ; (6)Input Voltage 5V≤VO≤15V: 35V; (7)ESD Susceptibility: TBD.
Features

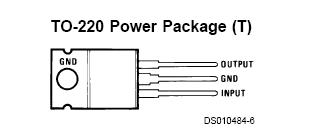

78M12 features: (1)Output current in excess of 0.5A; (2)No external components; (3)Internal thermal overload protection; (4)Internal short circuit current-limiting; (5)Output transistor safe-area compensation; (6)Available in TO-220, TO-39, and TO-252 D-PAK packages; (7)Output voltages of 5V, 12V, and 15V.
