Product Summary

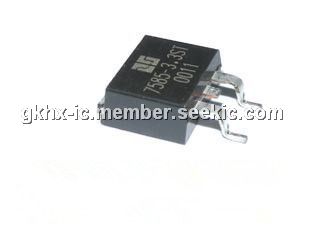

The 7585-3.3ST is a high performance low dropout regulator rated for 5A output current with fixed 2.5V/3.3V/5.0V and adjustable output. The 7585-3.3ST is designed for use in applications requiring low dropout characteristics over the rated current range. The applications of the 7585-3.3ST include Pentium processor supplies, power PC supplies, computer Add-on cards, other applications requiring low dropout voltage over rated current.
Parametrics
7585-3.3ST absolute maximum ratings: (1)Input Voltage (VIN): 7V; (2)Operating Junction temperature: 150℃; (3)Storage Temperature Range: -65℃ to 150℃; (4)Lead temperature (Soldering, 10 seconds): 300℃.
Features
7585-3.3ST features: (1)Input-output differential of typical 1.1V at 5A and low quiescent current; (2)output current is excess of 5A; (3)Fast transient response; (4)Reverse battery protection; (5)Short circuit protection; (6)Internal thermal overload protection; (7)Available in 3L plastic TO-220 and surface mount 3L TO-263/252 packages; (8)Pin assignment identical to EZ1585B and LT1585A series.
