Product Summary

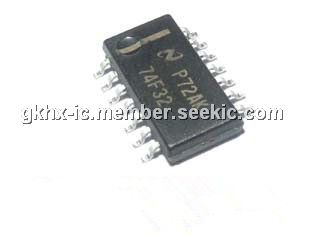

The 74F32 is a Quad 2-Input OR Gate. This device contains four independent gates, each of which performs the logic OR function.
Parametrics
74F32 absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Ambient Temperature under Bias: -55℃ to +125℃; (3)Junction Temperature under Bias: -55℃ to +150℃; (4)VCC Pin Potential to Ground Pin: -0.5V to +7.0V; (5)Input Voltage (Note 2): -0.5V to +7.0V; (6)Input Current (Note 2): -30 mA to +5.0 mA; (7)Voltage Applied to Output in HIGH State (with VCC = 0V); (8)Standard Output: -0.5V to VCC; (9)3-STATE Output: -0.5V to +5.5V; (10)Current Applied to Output in LOW State (Max): twice the rated IOL (mA); (11)ESD Last Passing Voltage (Min): 4000V.
Features
74F32 features: (1)VIH Input HIGH Voltage: 2.0V Min; (2)VIL Input LOW Voltage: 0.8V Max; (3)VCD Input Clamp Diode Voltage: -1.2V Max; (4)VOH Output HIGH Voltage 10% VCC: 2.5V Min; (5)5% VCC: 2.7V Min; (6)Output LOW voltage 10% VCC: 0.5V Max; (7)Input HIGH Current: 5.0μA Max.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 74F323PC |
Fairchild Semiconductor |
Counter Shift Registers Octal Ser/Par Reg |
Data Sheet |
Negotiable |
|
||||
 |
74F323SC |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
74F323SCX |
Fairchild Semiconductor |
Counter Shift Registers Octal Ser/Par Reg |
Data Sheet |
Negotiable |
|
||||
 |
74F32SC |
|
IC GATE OR QUAD 2 INPUT 14-SOIC |
Data Sheet |
Negotiable |
|
||||
|
74F32SCX |
|
IC GATE OR QUAD 2INPUT 14SOIC |
Data Sheet |
Negotiable |
|
||||
 |
74F32SJX |
|
IC GATE OR QUAD 2INPUT 14SOP |
Data Sheet |
Negotiable |
|
||||
|
74F32SJ |
|
IC GATE OR QUAD 2INPUT 14SOP |
Data Sheet |
Negotiable |
|
||||
 |
74F32PC |
|
IC GATE OR QUAD 2-INPUT 14-DIP |
Data Sheet |
Negotiable |
|
||||
