Product Summary

The 13475FP is a two-phase stepping motor driver. It can provide an output of 0.33A ×12V/phase. The functions of the 13475FP include 0.3A dual full bridge, chip enable, diode clamp, and over-temperature shutdown.

Parametrics

13475FP absolute maximum ratings: (1)Control stage supply voltage: 7V; (2)Output stage supply voltage: 15V; (3)Input voltage: 0 to VCC V; (4)Normal output current: 330mA; (5)Peak output current: 500mA; (6)Power dissipation: 1.0W; (7)Junction temperature: 150℃; (8)Storage temperature: -55 to 125℃.

Features

13475FP features: (1)Wide output current/voltage range 4.5V to 13.8V; (2)Single input forward/reverse select (D); (3)Input compatible with TTL, LSTTL, and 5V CMOS; (4)Compact thermally conductive surface-mount package.

Diagrams

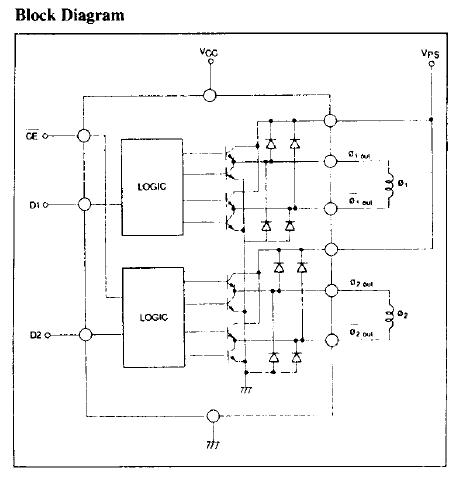

13475FP block diagram
