Product Summary

The RM 1800HE-34S is high power switching use insulated type high voltage diode module. Applications include Traction drives, High Reliability Converters / Inverters and DC choppers.

Parametrics

RM 1800HE-34S absolute maximum ratings: (1)Repetitive peak reverse voltage: 1700V; (2)Non-repetitive peak reverse voltage: 1700V; (3)Reverse DC voltage: 1150V; (4)DC forward current (Note 1): 1800A; (5)Surge forward current: 9600A; (6)Isolation voltage: 6000V; (7)Junction temperature: -40~+150℃; (8)Operating temperature: -40~+125℃; (9)Storage temperature: -40~+125℃.

Features

RM 1800HE-34S features: (1)IF 1800A; (2)VRRM 1700V; (3)Insulated Type; (4)1-element in a Pack; (5)AISiC Baseplate.

Diagrams

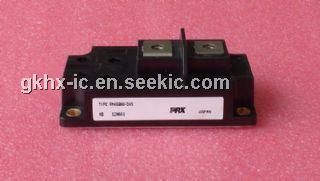

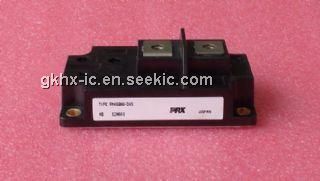

RM 1800HE-34S OUTLINE DRAWING & CIRCUIT DIAGRAM
