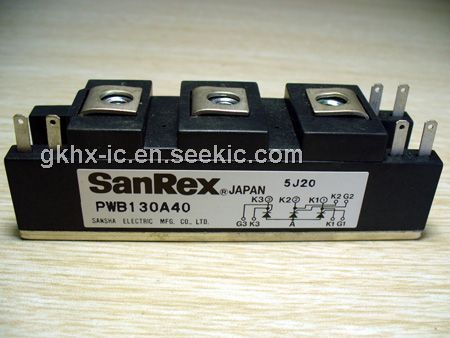

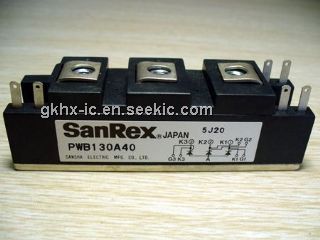

Product Summary

The PWB130A40 is a thyristor module suitable for low voltage, 3 phase recifier applications. Its applications include Welding power Supply and various DC power Supply.

Parametrics

PWB130A40 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage: 400V; (2)Non-Repetitive Peak Reverse Voltage: 480V; (3)Repetitive Peak Off-State Voltage: 400V; (4)Average On-State Current: 130A; (5)R.M.S. On-State Current: 204A; (6)Surge On-State Current: 3200/3500 A; (7)Peak Gate Power Dissipation: 10W; (8)Average Gate Power Dissipation: 1W; (9)Peak Gate Current: 3A; (10)Peak Gate Voltage (Forward): 10V; (11)Peak Gate Voltage (Reverse): 5V; (12)Operating Junction Temperature: -30 to +150℃; (13)Storage Temperature: -30 to +125℃.

Features

PWB130A40 features: (1)IT(AV)130A (each device); (2)high Surge Current 3500 A (50/60Hz); (3)Easy Construction; (4)Non-isolated. Mounting base as common Anode terminal

Diagrams

PWB130A40 circuit
