Product Summary

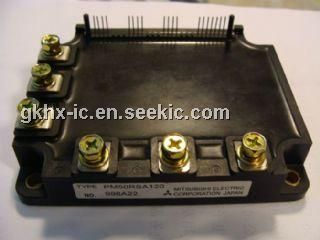

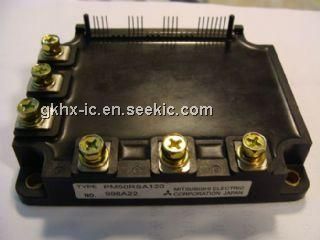

The PM75CLA060 is a flat-base type power module. Applications include general purpose inverter, servo drives and other motor controls.
Parametrics
PM75CLA060 absolute maximum ratings: (1)Collector-Emitter Voltage: 600V; (2)Collector Current: 75A; (3)Collector Current (Peak): 150A; (4)Collector Dissipation: 297W; (5)Junction Temperature: -20 ~ +150℃.
Features
PM75CLA060 features: (1)75A, 600V Current-sense IGBT type inverter; (2)Monolithic gate drive & protection logic; (3)Detection, protection & status indication circuits for, shortcircuit, over-temperature & under-voltage (P-Fo available from upper arm devices); (4)Acoustic noise-less 5.5kW/7.5kW class inverter application.

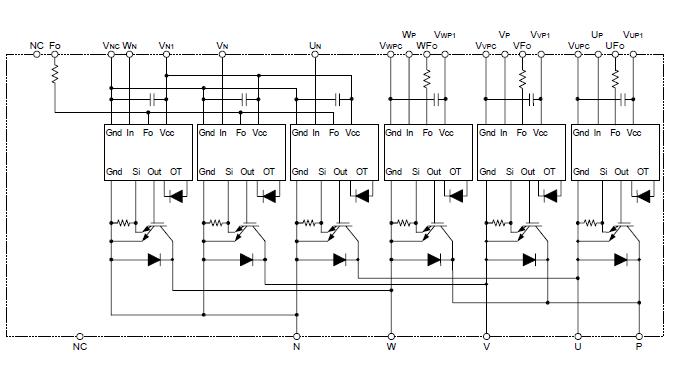

Diagrams
