Product Summary

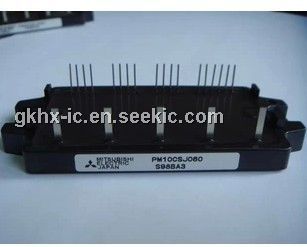

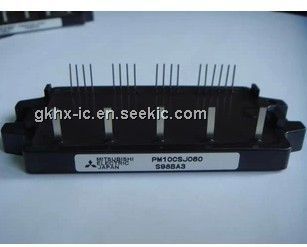

The PM10CSJ060 is an isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. Applications include Inverters, UPS, Motion/Servo Control and Power Supplies.

Parametrics

PM10CSJ060 absolute maximum ratings: (1)Power Device Junction Temperature: -20 to 150℃; (2)Storage Temperature: -40 to 125℃; (3)Case Operating Temperature: -20 to 100℃; (4)Module Weight (Typical): 60 Grams; (5)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part): 400 Volts; (6)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.): 2500 Vrms.

Features

PM10CSJ060 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic.

Diagrams

PM10CSJ060 Circuit Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PM10CSJ060
PM10CSJ060

MOD IPM 6PAC 600V 10A
Data Sheet
Negotiable
