Product Summary

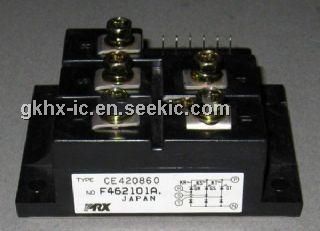

The CE420860 is a Powerex Three-Phase SCR/Diode Bridge Module which is designed for use in applications requiring variable DC Voltage control from AC mains. The module is isolated for easy mounting with other components on common heatsinks. The applications of CE420860 include Battery Supplies, AC and DC Motor Control and Furnace Control.
Parametrics
CE420860 absolute maximum ratings: (1)Peak Forward Blocking Voltage: 800 Volts; (2)Transient Peak Forward Blocking Voltage (Non-Repetitive): 960 Volts; (3)DC Forward Blocking Voltage: 640 Volts; (4)Peak Reverse Blocking Voltage: 800 Volts; (5)Transient Peak Reverse Blocking Voltage (Non-Repetitive): 960 Volts; (6)DC Reverse Blocking Voltage: 640 Volts; (7)DC Output Current: 60 Amperes; (8)Peak One-Cycle Surge (Non-Repetitive) On-State Current (60Hz): 500 Amperes; (9)Peak One-Cycle Surge (Non-Repetitive) On-State Current (50Hz): 460 Amperes; (10)Critical Rate-of-Rise of On-State Current: 100 Amperes/ms; (11)Peak Gate Power Dissipation: 5.0 Watts; (12)Average Gate Power Dissipation: 0.5 Watts; (13)Peak Forward Gate Voltage:10 Volts; (14)Peak Reverse Gate Voltage: 5.0 Volts; (15)Peak Forward Gate Current: 2.0 Amperes; (16)Storage Temperature: -40 to 125℃; (17)Operating Temperature: -40 to 125℃; (18)Module Weight (Typical): 310 Grams; (19)V Isolation: 2000 Volts.
Features
CE420860 features: (1)Isolated Mounting; (2)Glass Passivated Chips; (3)di/dt = 500V/msec; (4)Metal Baseplate; (5)Low Thermal Impedance; (6)Quick Connect Signal Terminals.

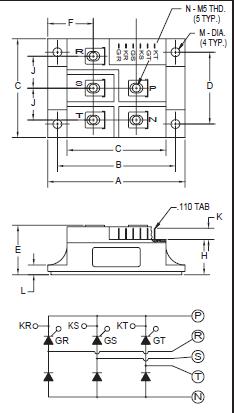

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

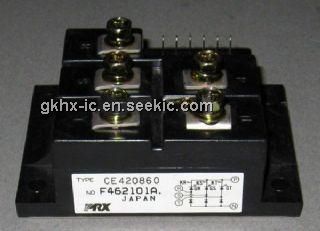

 CE420860 |
|
SCR MOD BRIDGE 800V 60A |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
CE420830 |
|
SCR MOD BRIDGE 800V 30A |
Data Sheet |
|
|
||||||
|
CE420860 |
|
SCR MOD BRIDGE 800V 60A |
Data Sheet |
|
|
||||||
